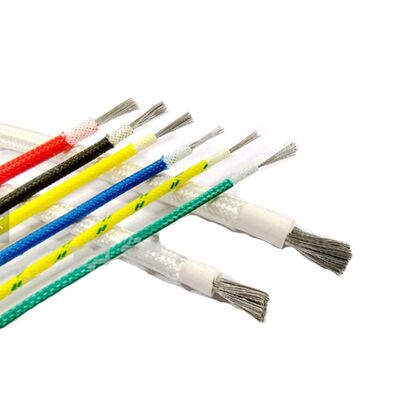

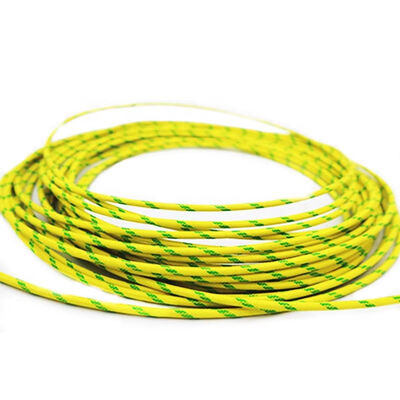

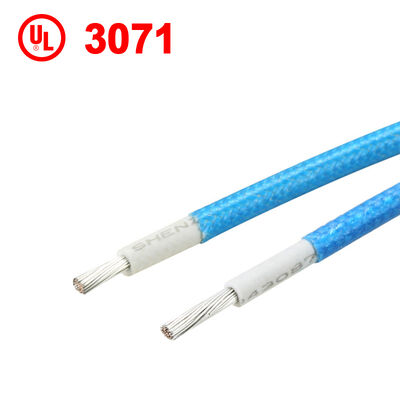

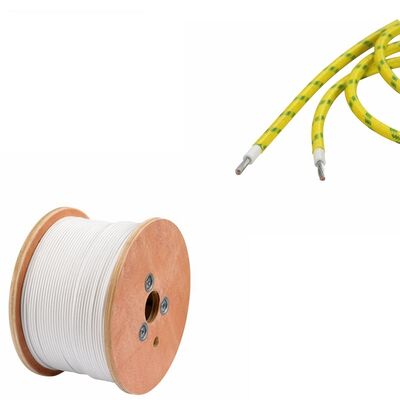

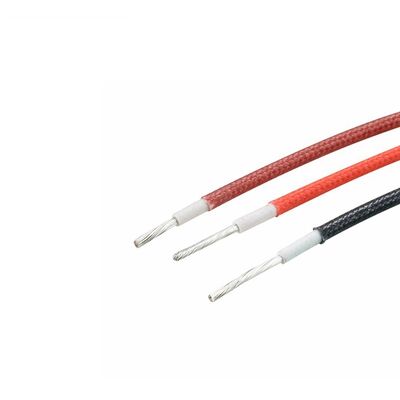

UL3071 600V Rated Voltage 200°C High Temperature Resistant Flexible Silicone Insulated Fiberglass Braided Heater Element Wire
รายละเอียดสินค้า
| วัสดุตัวนำ | ทองแดง | ตัวเลือกเส้นผ่านศูนย์กลาง | 13AWG, 14AWG, 16AWG, 18AWG |
|---|---|---|---|
| วัสดุฉนวน | ซิลิโคน | แรงดันไฟฟ้าที่ได้รับการจัดอันดับ | 600V |
| ประเภทตัวนำ | ควั่น | อุณหภูมิสูงสุด | 200C |
| ประเภทฉนวน | ยางซิลิโคน | การก่อสร้าง | ทองแดงกระป๋อง |
| ความยาวของหน่วย | 305เมตร/ม้วน | ความต้านทานของตัวนำ | 23.2Ω/กม (18AWG), 14.6Ω/กม (16AWG), 8.96Ω/กม (14AWG), 6.97Ω/กม (13AWG) |
| เส้นผ่านศูนย์กลางตัวนำ | 1.19 มม. (18AWG), 1.49 มม. (16AWG), 1.87 มม. (14AWG), 2.07 มม. (13AWG) | ความหนาของฉนวน | 0.93มม |
| เส้นผ่าศูนย์กลางโดยรวม | 3.05 มม. (18AWG), 3.35 มม. (16AWG), 3.73 มม. (14AWG), 3.93 มม. (13AWG) | ประเภทสายไฟ | ฉนวน |
| มาตรฐาน | ul3071 | ||
| เน้น | 600V Rated Voltage Fiberglass Braided Wire,200°C High Temperature Resistant Silicone Insulated Wire,Flexible Silicone Insulated Heater Element Wire |
||
รายละเอียดสินค้า
UL3071 High Temperature Resistant Flexible Silicone Insulated Fiberglass Braided Heater Element Wire
Seeking Country Agents for a Win-Win Partnership
Product Overview
Technical Specifications
| Conductor Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond. Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|
| 18 | 7/0.39 | 1.19 | 0.93 | 3.05 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.93 | 3.35 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.87 | 0.93 | 3.73 | 8.96 | 305/1000 |
| 13 | 50/0.254 | 2.07 | 0.93 | 3.93 | 6.97 | 305/1000 |
Company Profile
Our Products
Applications
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
